Description
Features
- UL 778 & CSA 22.2 Certified
- 12 Volt, 3.0 GPM, 55 PSI Positive Displacement Pump
- Variable Flow With Bypass Technology For Reduced Cycling!
- Self-Priming And Capable Of Run Dry Operation
- 4 Year Warranty comes standard on all SEAFLO products
Product

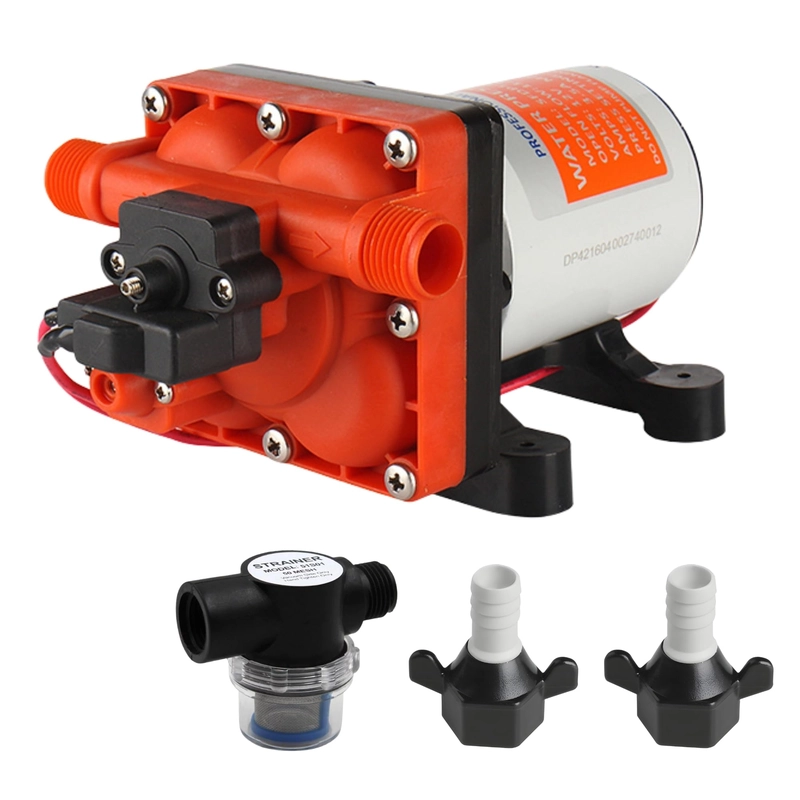

SEAFLO 42 Series Diaphragm Pump with Bypass for Reduced Cycling 12V 3.0GPM 55PSIMeet our newest addition to our diaphragm pumps: the 42 series. It retains the raw power and pressure of its predecessors, but also can adapt to situations where huge flow is not needed. Compact but capable, it is a great fit for tight spaces. It also may be configured with different inlet types, each with their own unique fittings, to be sure that it fits any application you can APPLICATIONSMarine,RV,Agricultural Spraying,General Industrial,Filtration,Beverage Processing,Solar Water Type: 4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry Control Type: Pressure switch & By pass control Max Recommended Temperature: 60° C（140° F） Priming Capabilities: 6 feet (1.8 m) suction lift Re-start Pressure: Shut-off Pressure 55 PSI : 41 PSI ±5 PSI (±0.3 bar) Inlet/Outlet Ports: 1/2″-14 MNPT Weight: 4.0 lbs (1.9 kg)MOTOR Leads: 16 AWG, 9.4″ (24 cm) long with 2-Pin connector / Leads Duty Cycle: Intermittent Draw: 7.5 A Fuse: 11.3 ASTANDARD PUMP CONFIGURATIONS Model: SFDP1-030-055-42 Open Flow(GPM/LPM): 3.0 / 11.3 Voltage: 12 V Control Type: switch & By pass Max Draw: 7.5 A Shut-off Pressure(PSI/BAR): 55 / 3.8 Valves: EPDM Diaphragm: Santoprene Ports: 1/2″-14 MNPT Wire Connections: 2-Pin/Leads
